Complete LAND ROVER Defender Restoration Kit
It includes a fully assembled, precision-crafted body for any type of Land Rover DEFENDER, improved beyond the original, coated in premium Novol paint. The underbody is sealed with industrial-grade anti-corrosion mastics. It’s mounted on a galvanized MAER chassis, reinforced and coated for durability. The package includes all necessary seals, locks, and mounting hardware, all assembled.

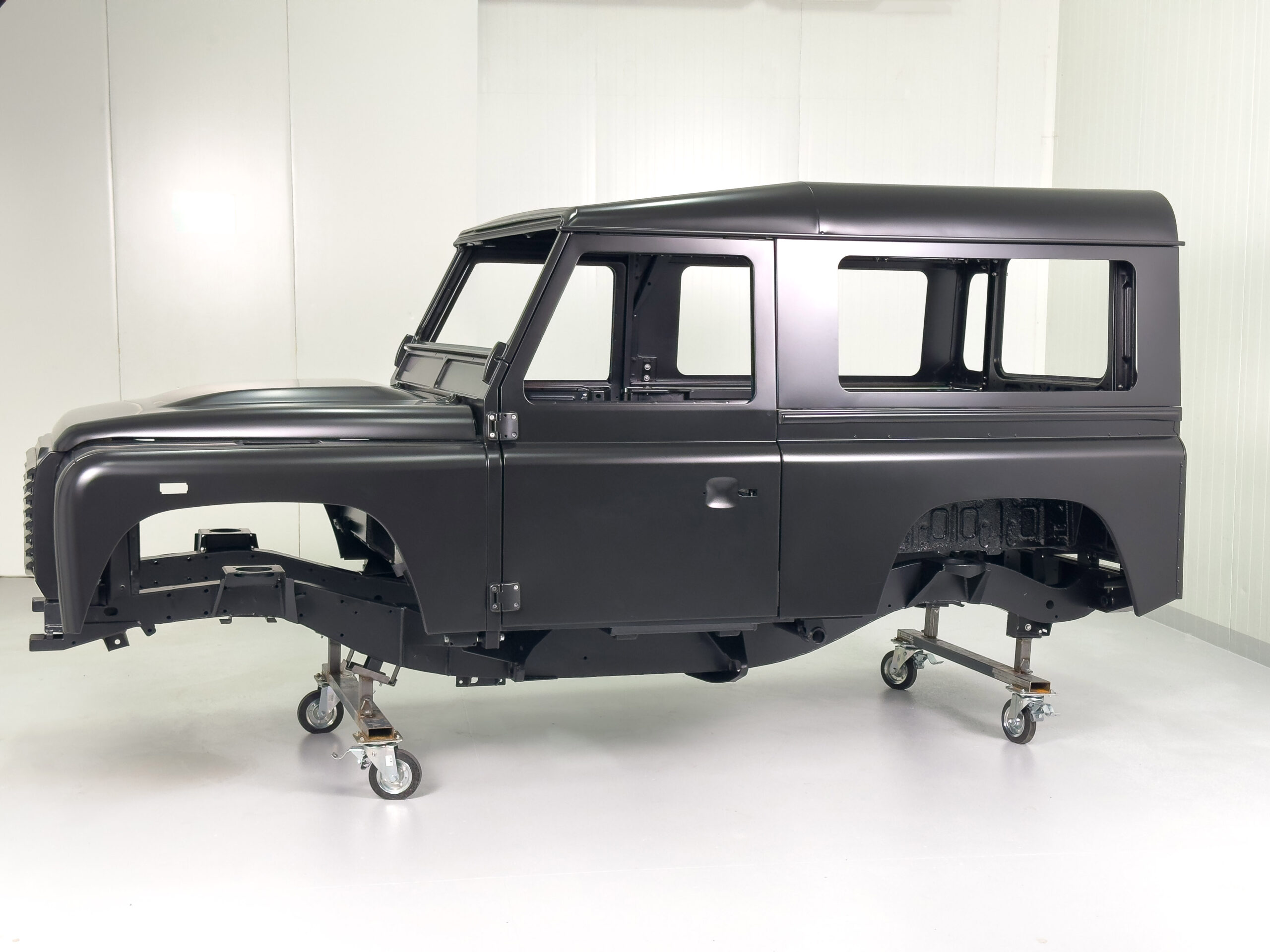

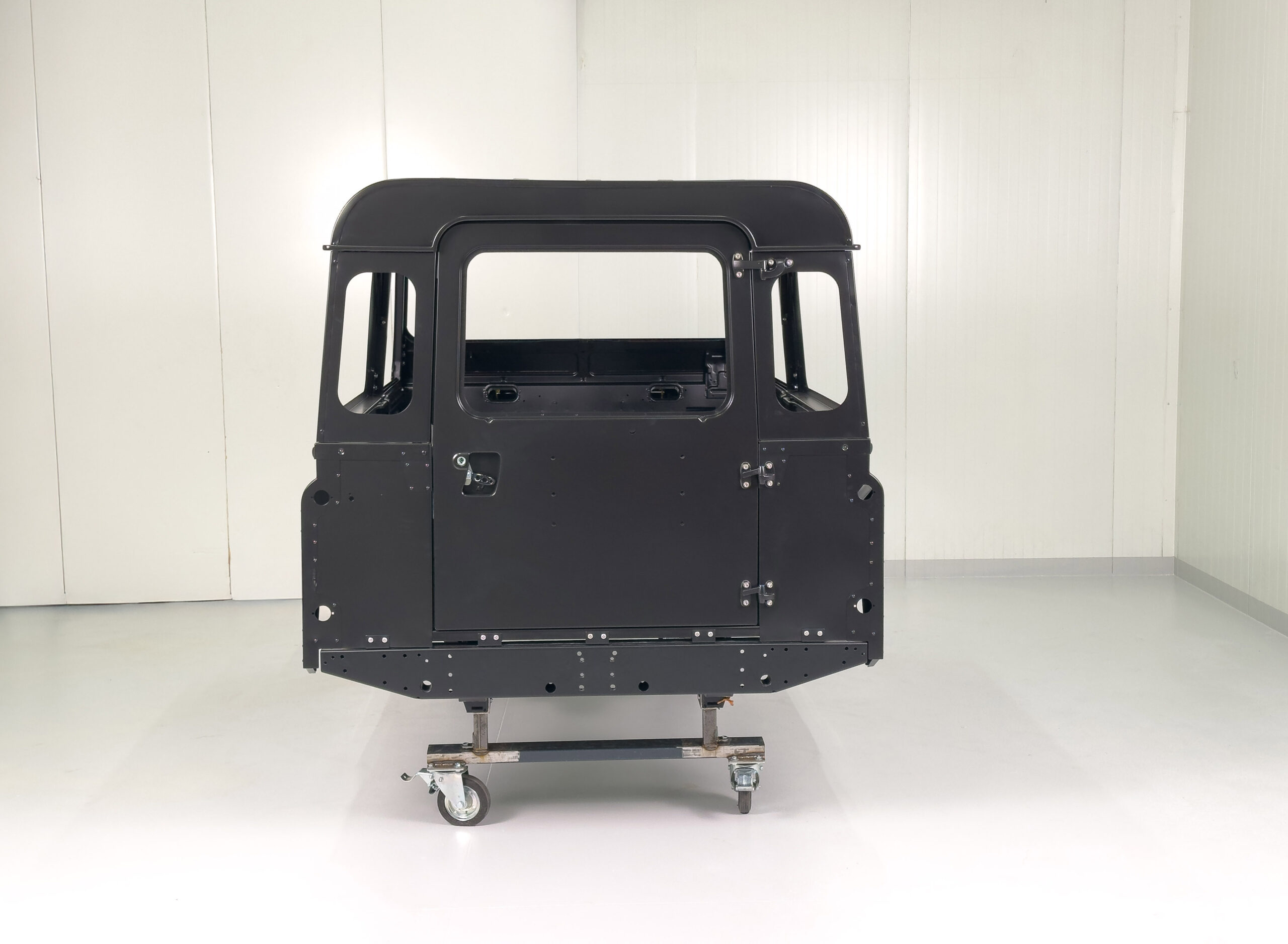

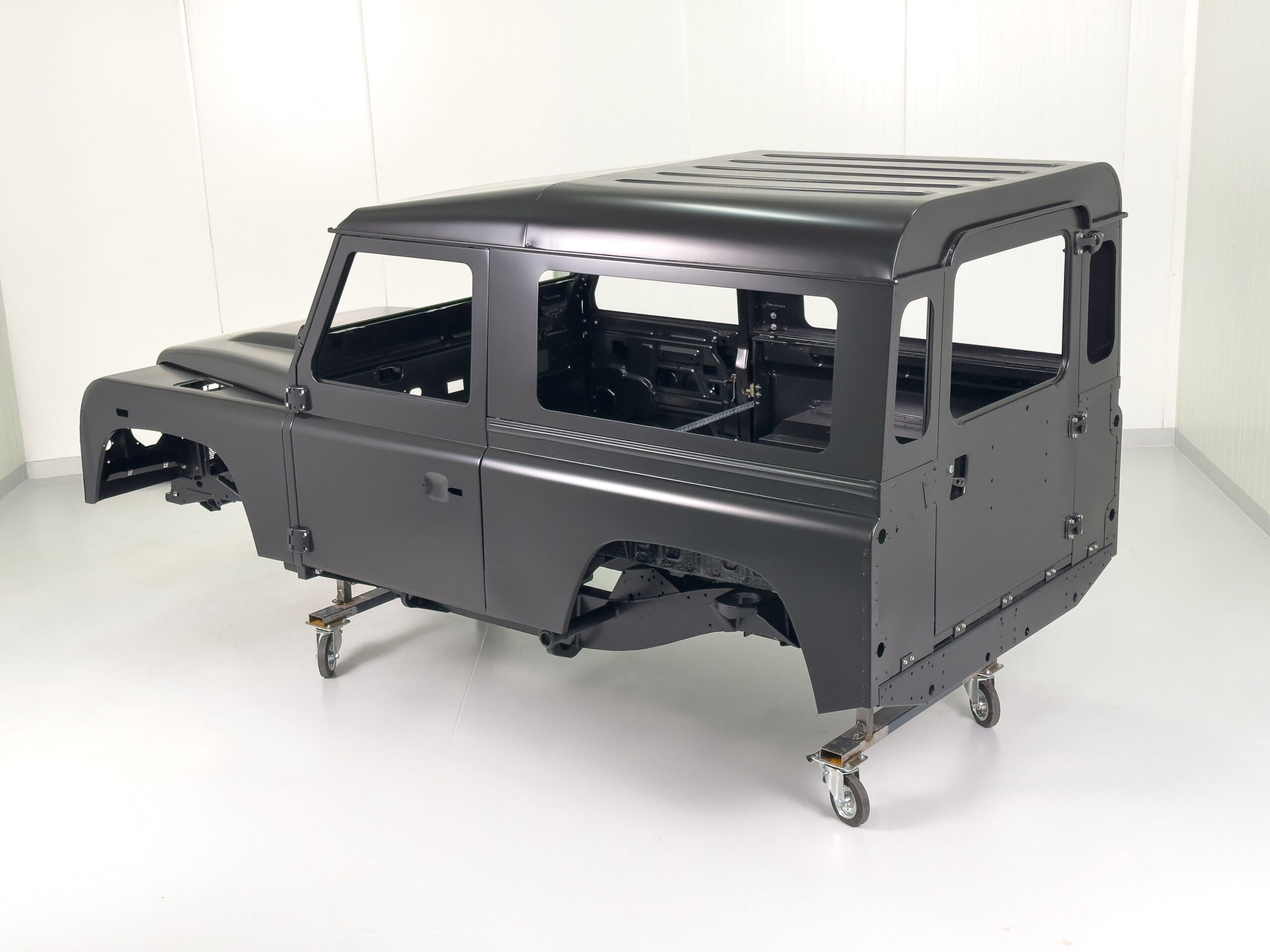

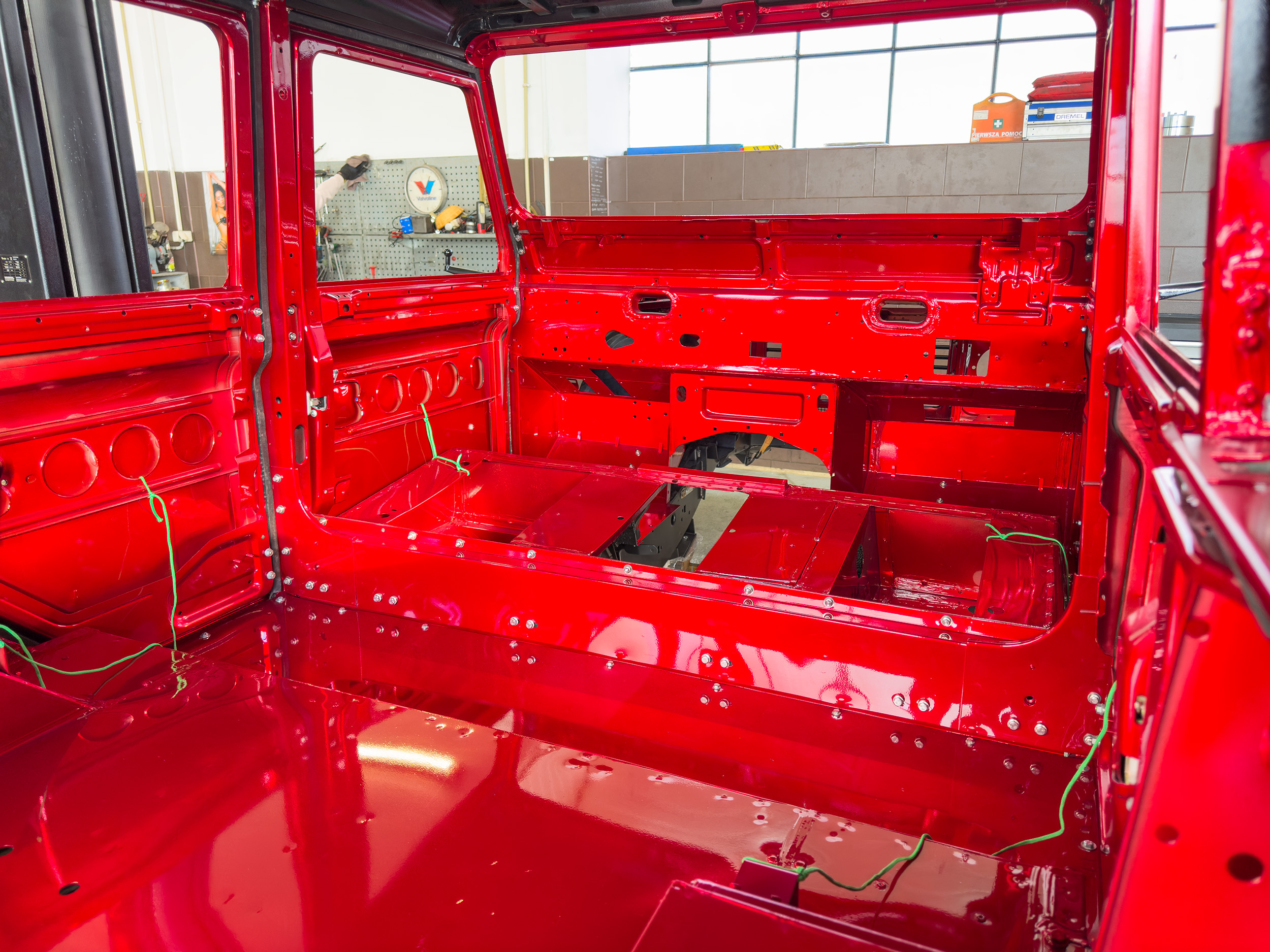

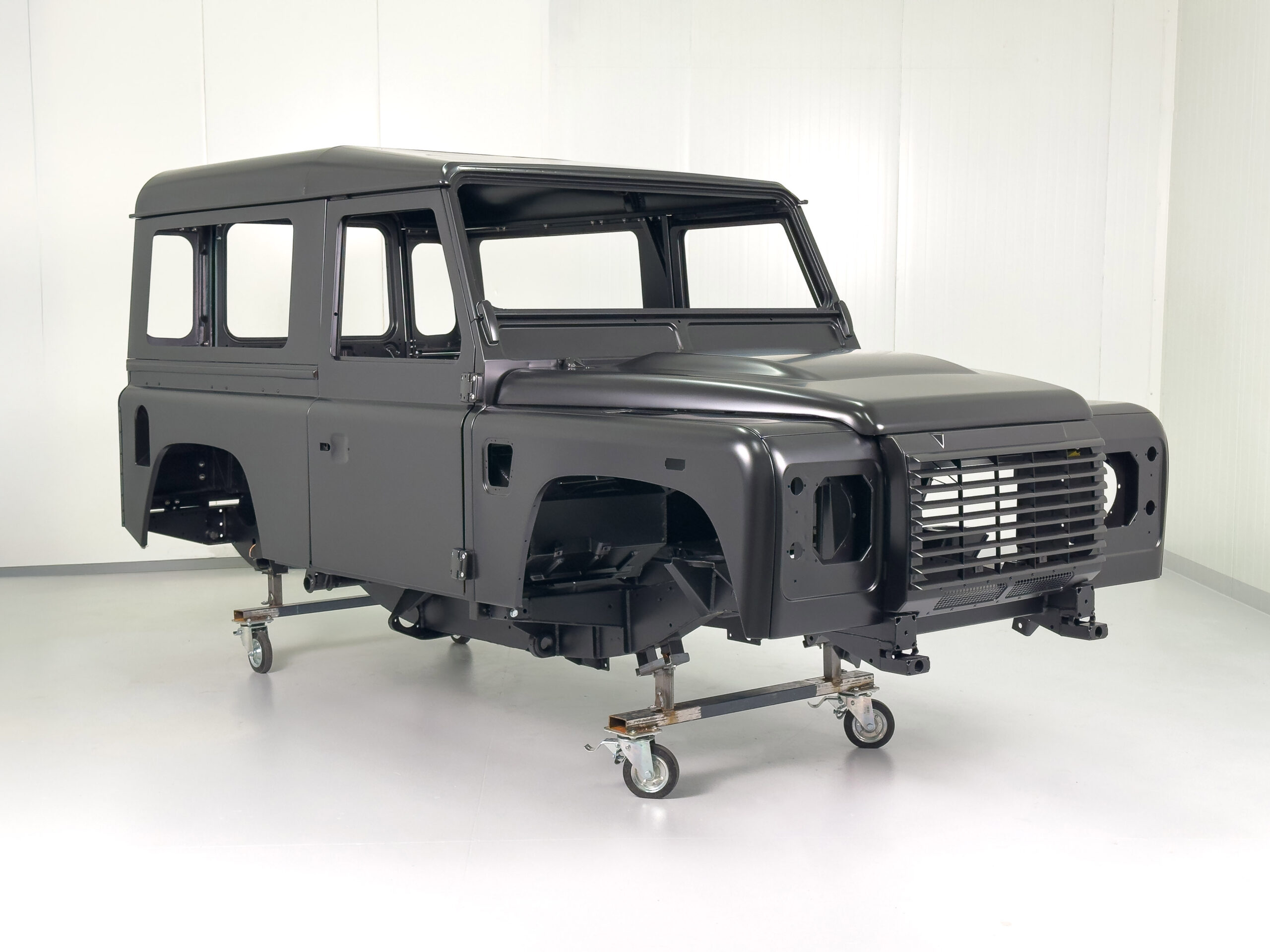

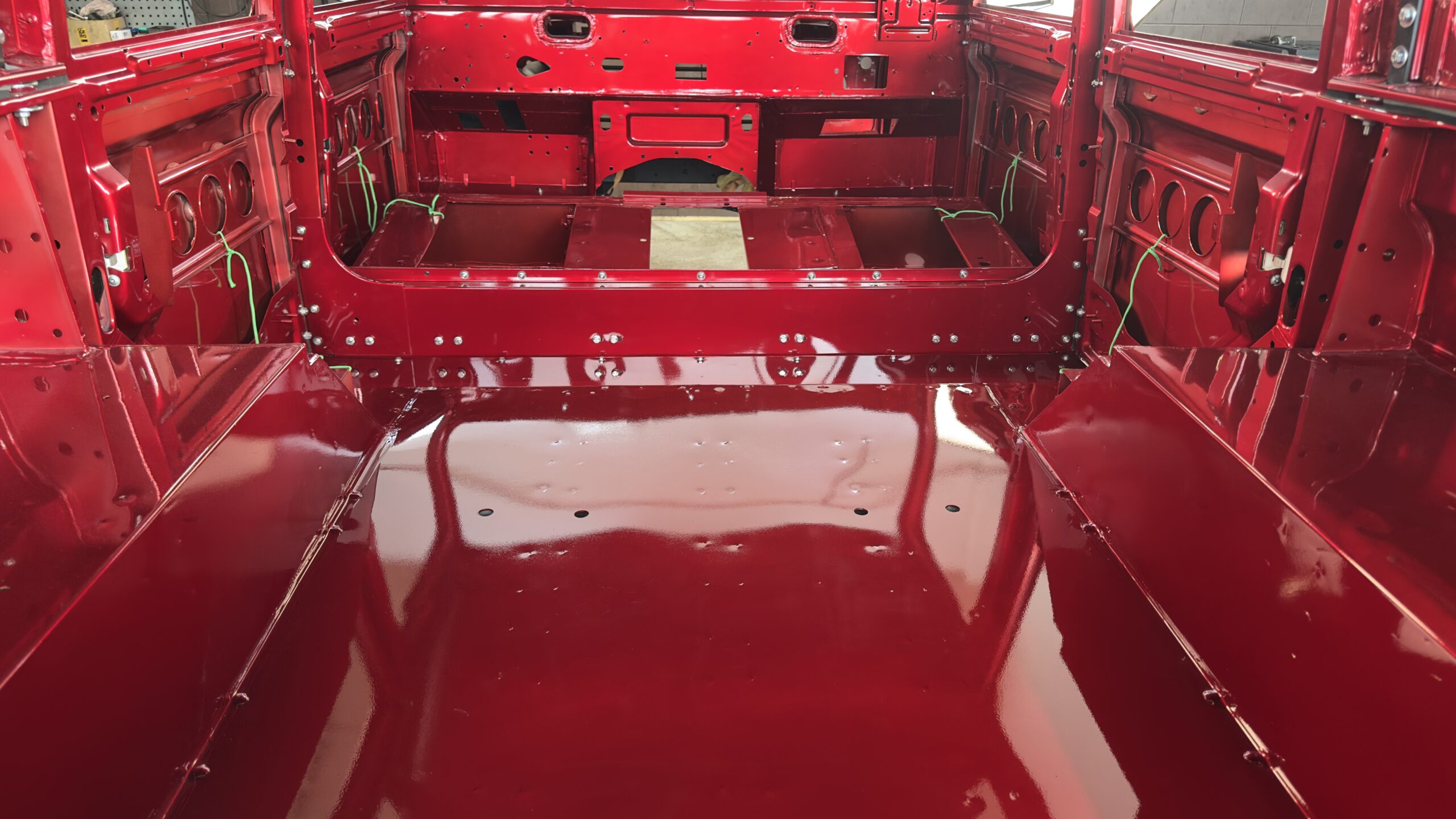

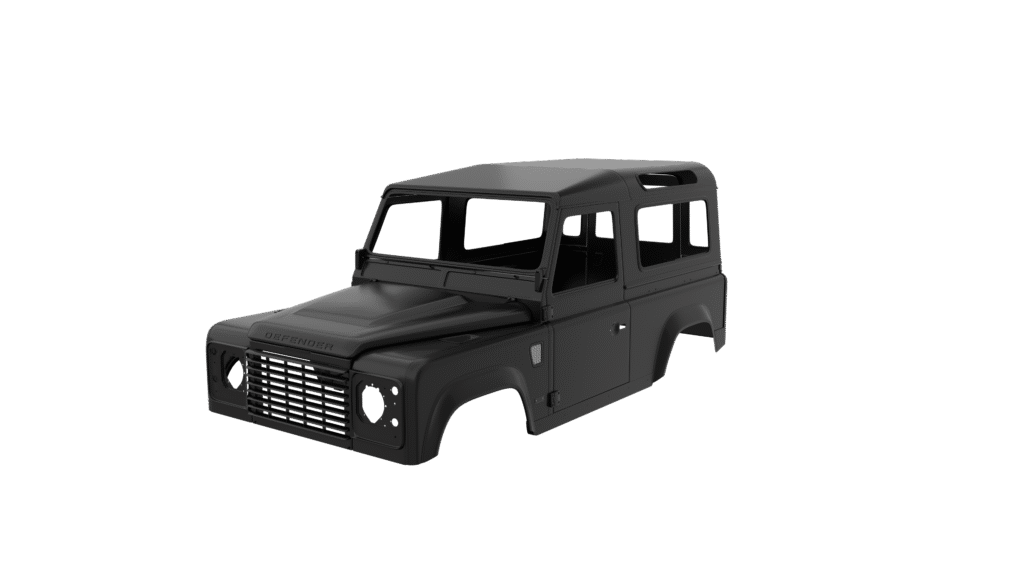

NEW BODY
Fully Assembled & Ready to Use – Arrives fully built, eliminating the need for welding, panel fitting, or adjustments
Factory-Plus Precision – Designed with tighter tolerances than the original, ensuring perfect alignment for doors, panels, and glass.
Materials Used in Pack One
DC04 Steel
DC04 is a high-quality deep-drawing cold-rolled steel known for its excellent formability and surface quality. It is commonly used in automotive body panels due to its high ductility and smooth finish, which makes it ideal for precision shaping and painting. This steel offers a balance of strength and flexibility, ensuring durability while maintaining ease of fabrication.
DC06 Steel
DC06 is an ultra-deep-drawing cold-rolled steel with even higher formability than DC04. It is specifically designed for complex shaping processes that require extreme precision without compromising structural integrity. This steel is widely used in the automotive industry for producing high-precision body components that demand superior surface quality and resistance to deformation.
EN AW-5182 Aluminum Alloy
EN AW-5182 is a high-strength aluminum-magnesium alloy known for its excellent corrosion resistance, weldability, and formability. It is widely used in the automotive industry, particularly for body panels and structural components, due to its combination of lightweight properties and durability.

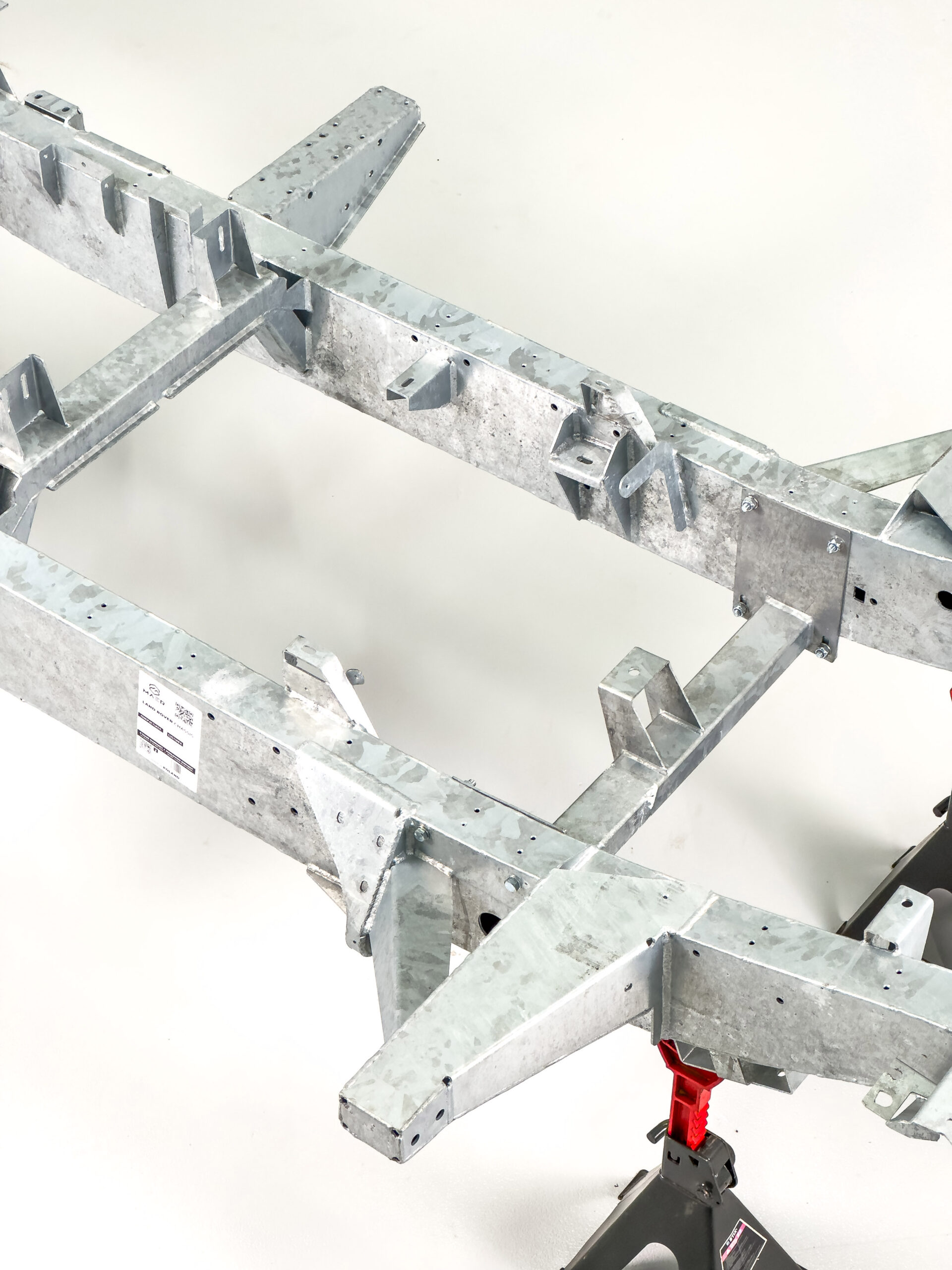

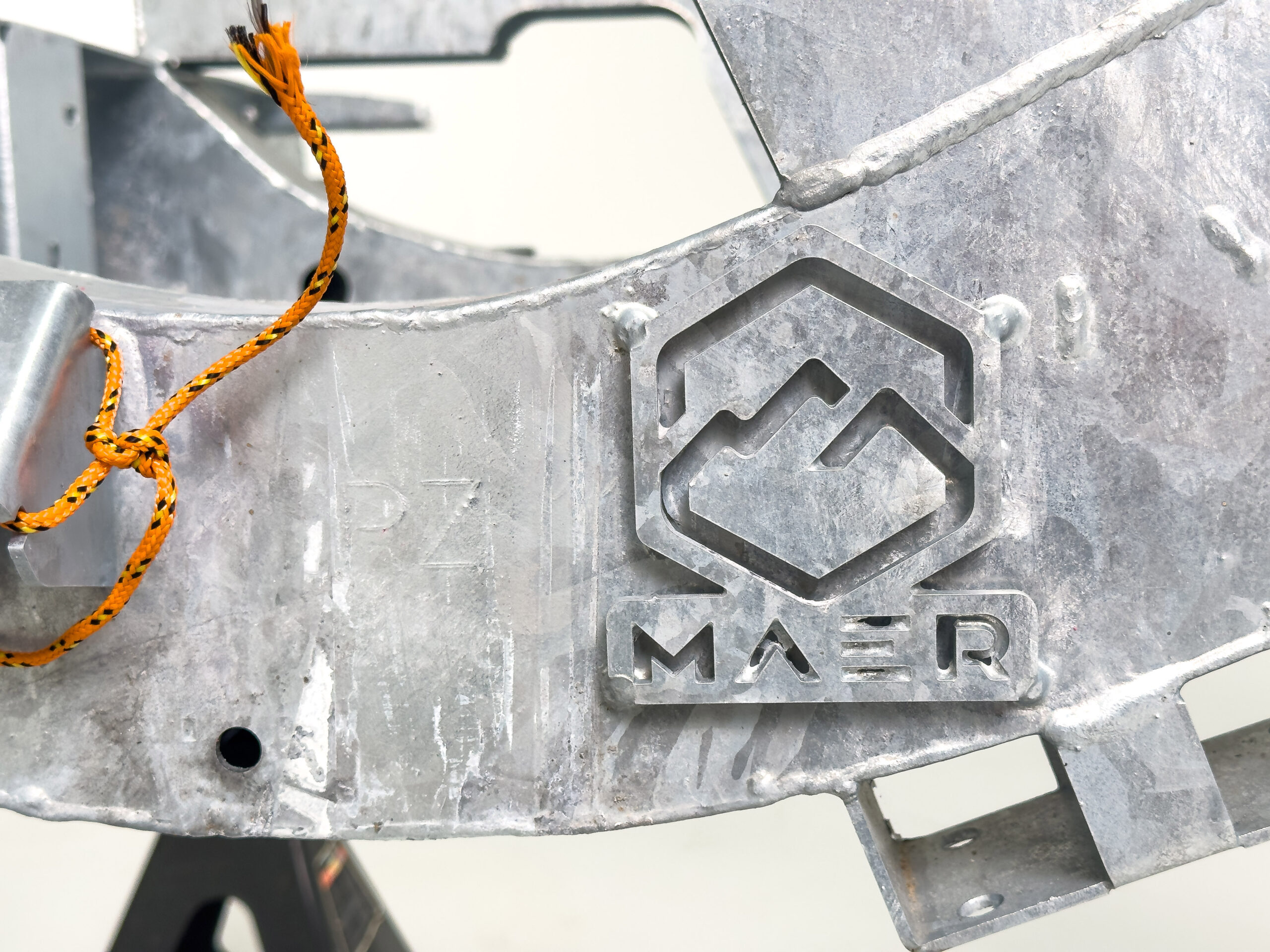

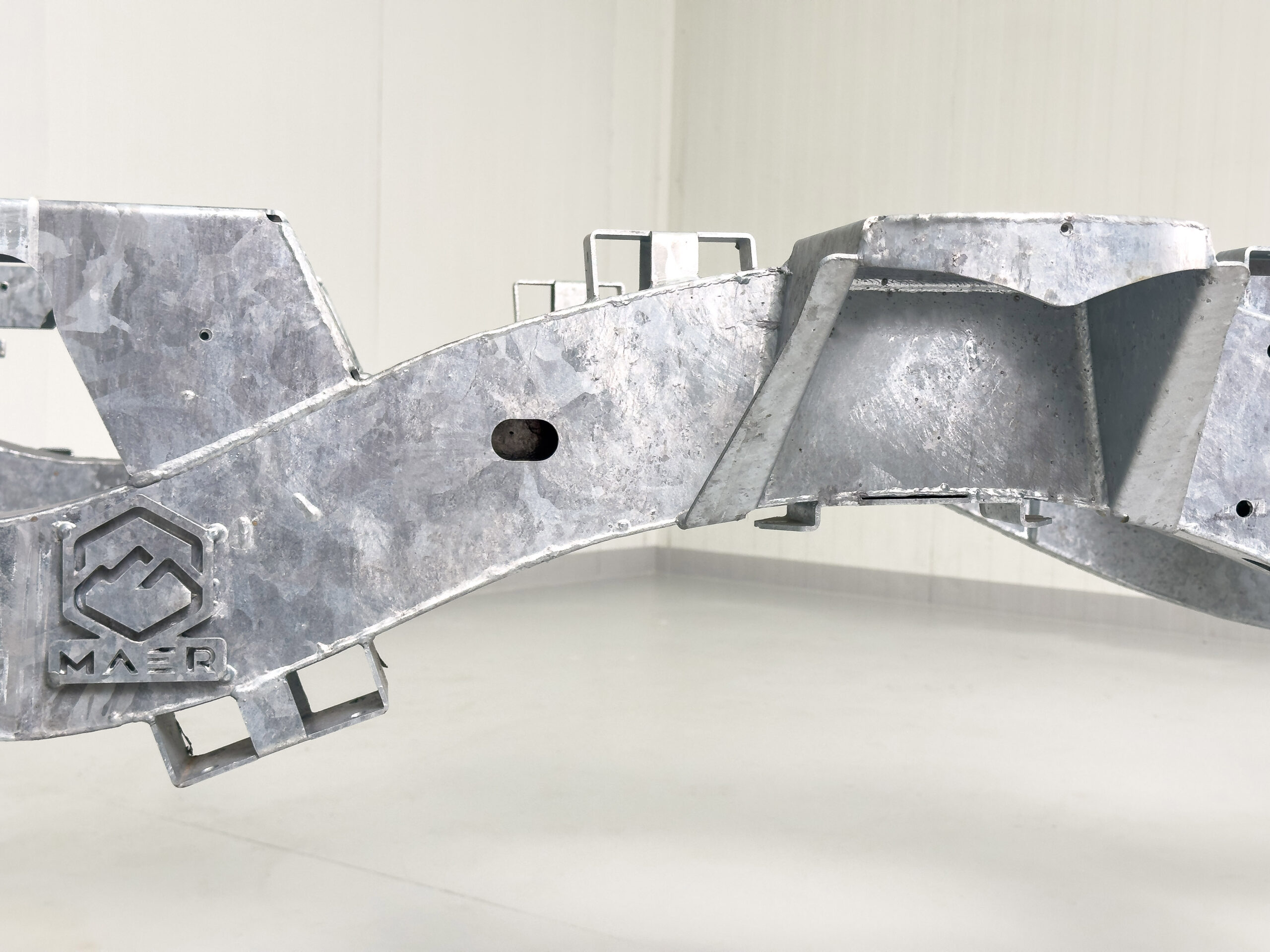

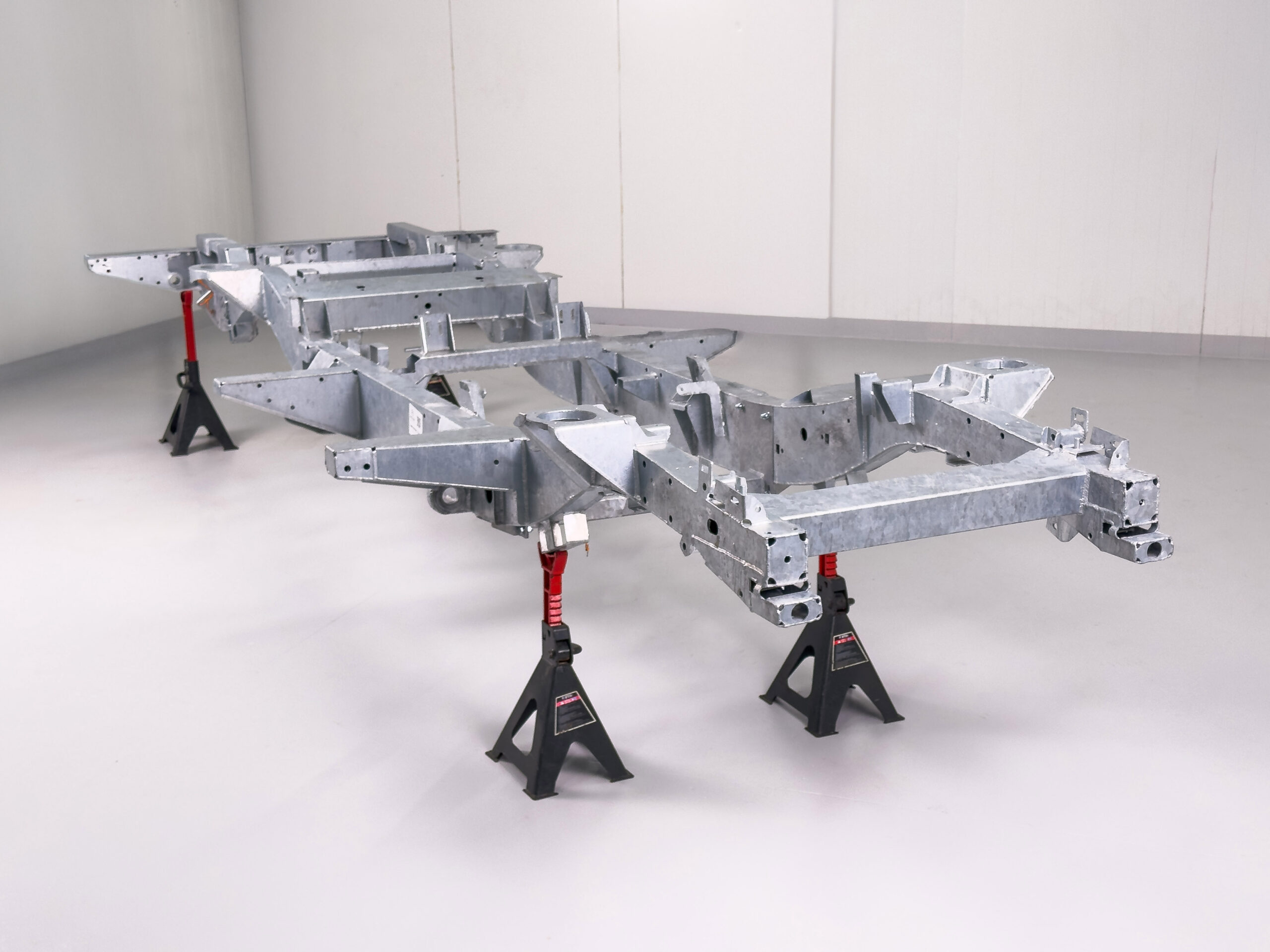

NEW CHASSIS
High-durability S355 J2+N carbon steel – Legs made from 3mm thick steel. Outriggers and cross members produced with 3mm to 8mm-thick material.
Laser & CNC press brake – All chassis elements are laser cut and shaped with CNC press brake.Legs are welded from four parts. Elements that require extra strength use thicker steel, not lamination!
Additional inspection holes – in the legs and all crossmembers so the chassis can be washed inside. Perfect for additional wax protection. Mud-accumulating points kept to a minimum.
All chassis are ready for the wiring loom and equipped with a pulling rope.
Hot dip galvanization – high-quality coating which achieves a most durable finish.
Construction designed from the beginning for hot dip galvanization with appropriate size holes and flow ways.
AWESOME PAINT

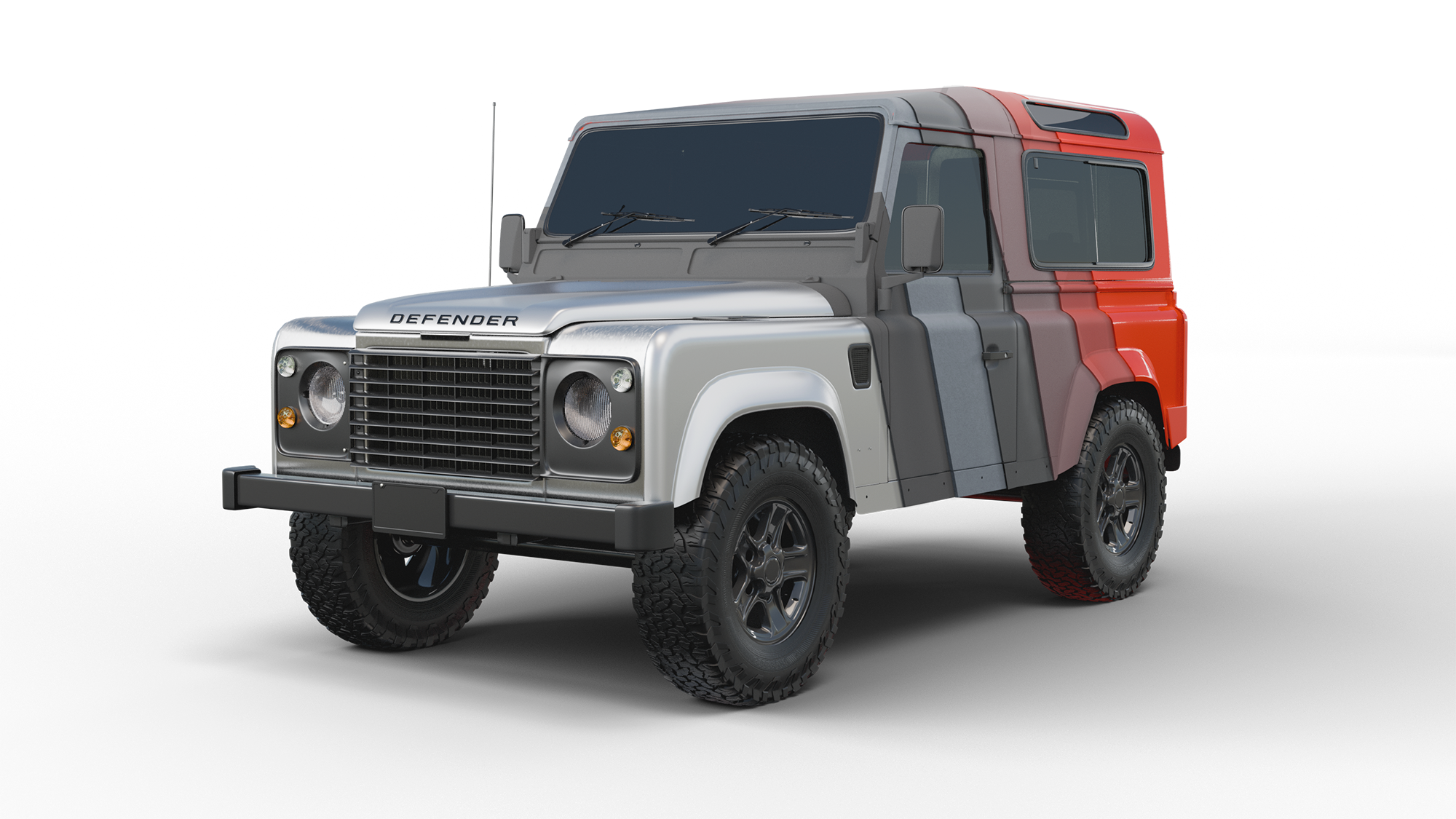

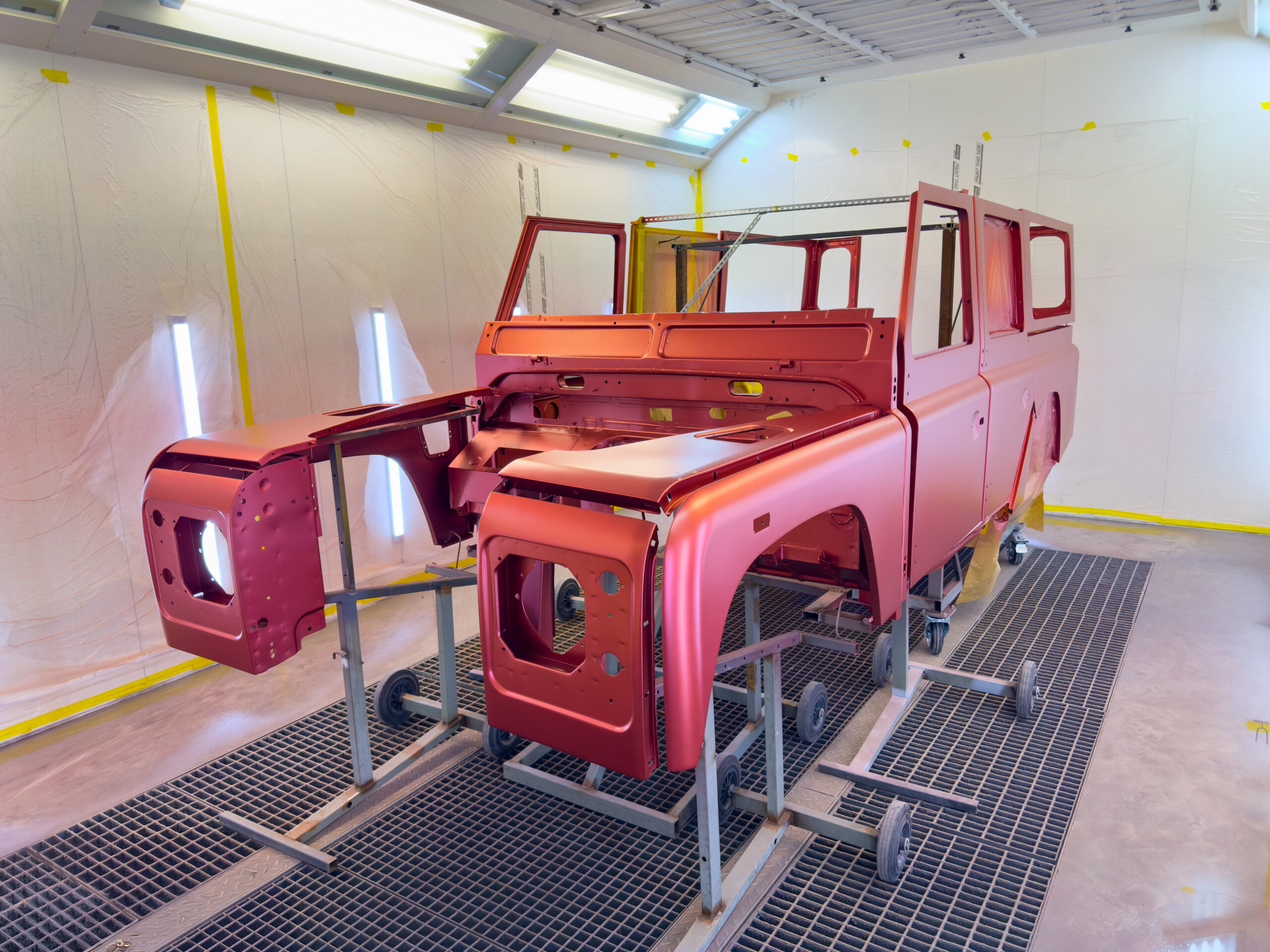

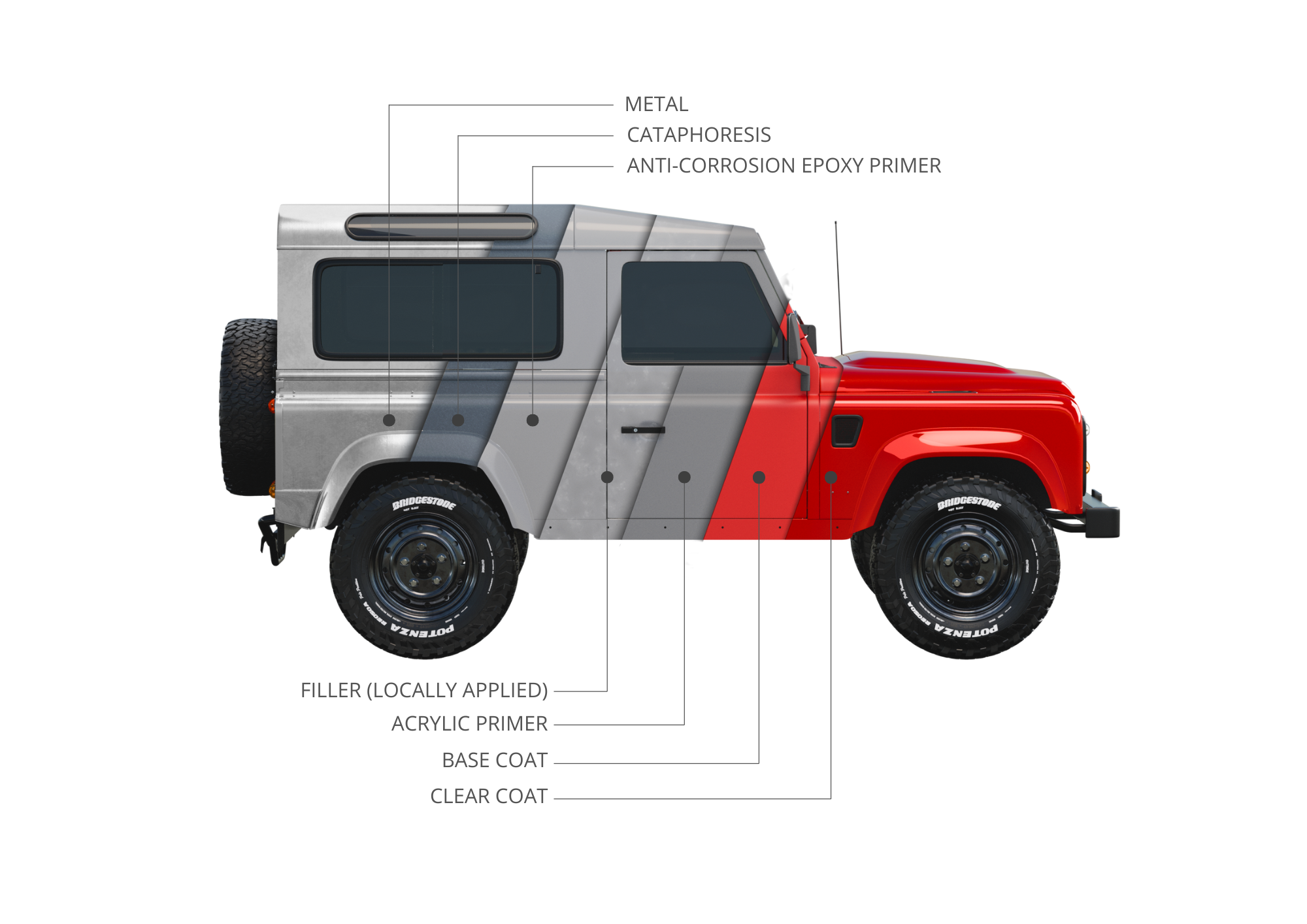

Multi-Stage Body Painting Process for Pack One – Using NOVOL Products

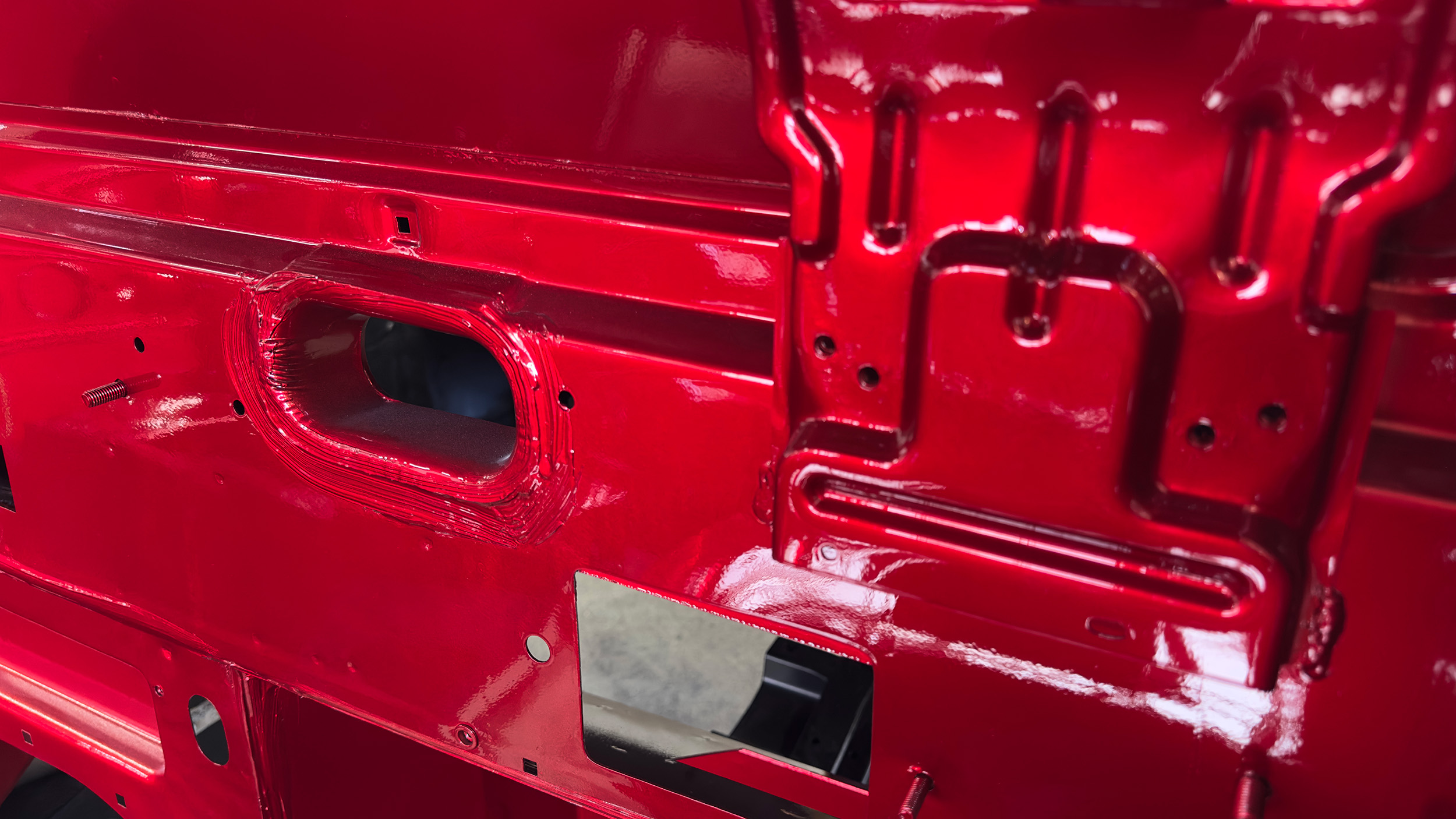

Our painting process follows a meticulously planned, multi-layered approach to ensure maximum durability, corrosion resistance, and a premium finish. Each stage is carried out using high-quality NOVOL products.
1. Metal Preparation
Before painting, all body panels are thoroughly cleaned and degreased. Mechanical treatment is applied to remove impurities and oxidation, ensuring optimal adhesion for subsequent coatings.
2. Cathodic Electrodeposition (Kataforeza)

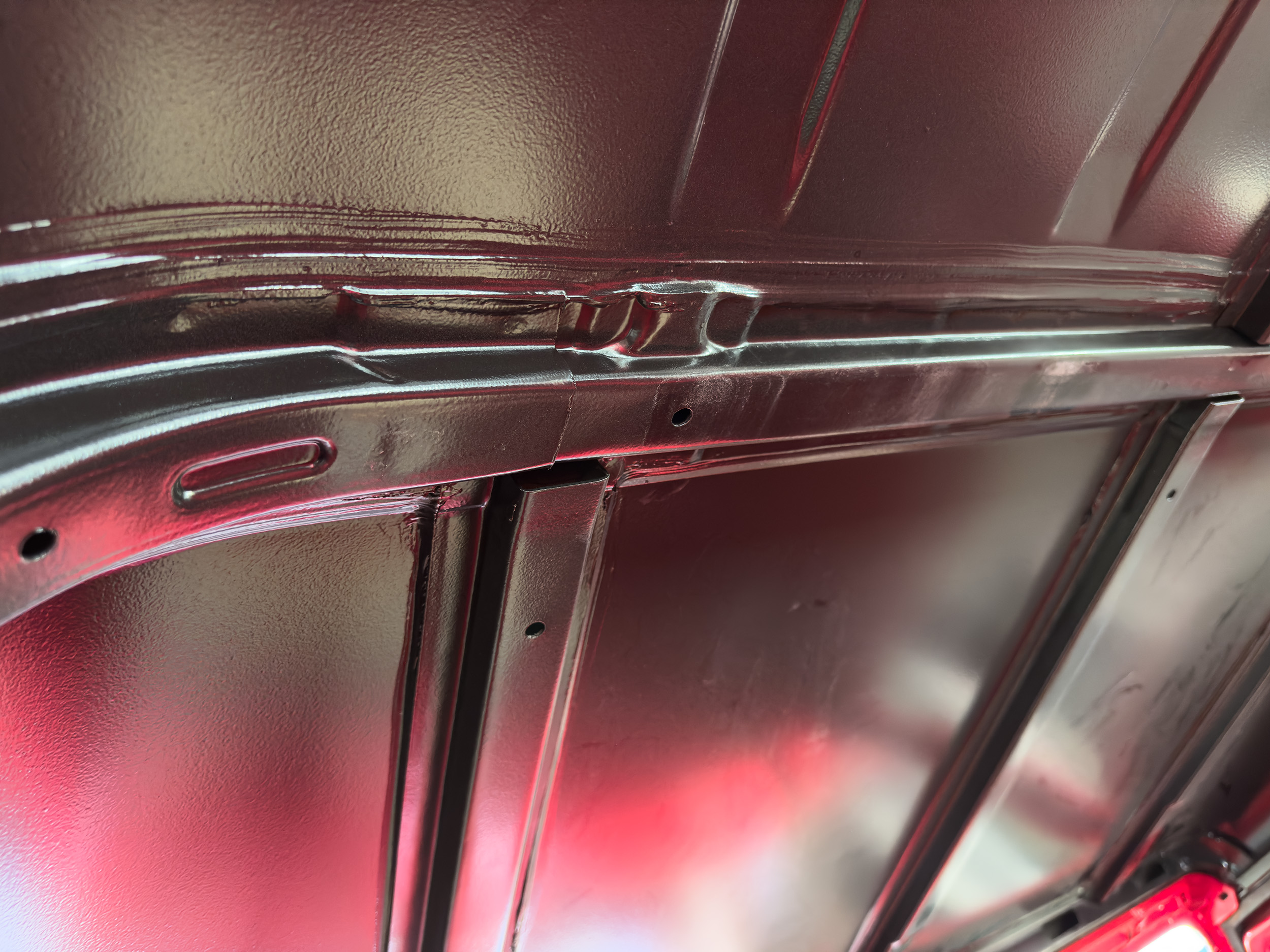

The body undergoes an advanced electrophoretic coating process, providing complete corrosion protection. This method ensures uniform coverage, even in hidden cavities, significantly extending the longevity of the vehicle.
3a. NOVOL STP – Seam Sealing & Underbody Protection
NOVOL STP sealant is applied to all panel joints and seams, creating a flexible and durable barrier that prevents water ingress and rust formation. Additionally, the entire underside of the body is coated with this specialized material to enhance protection against corrosion and mechanical damage.

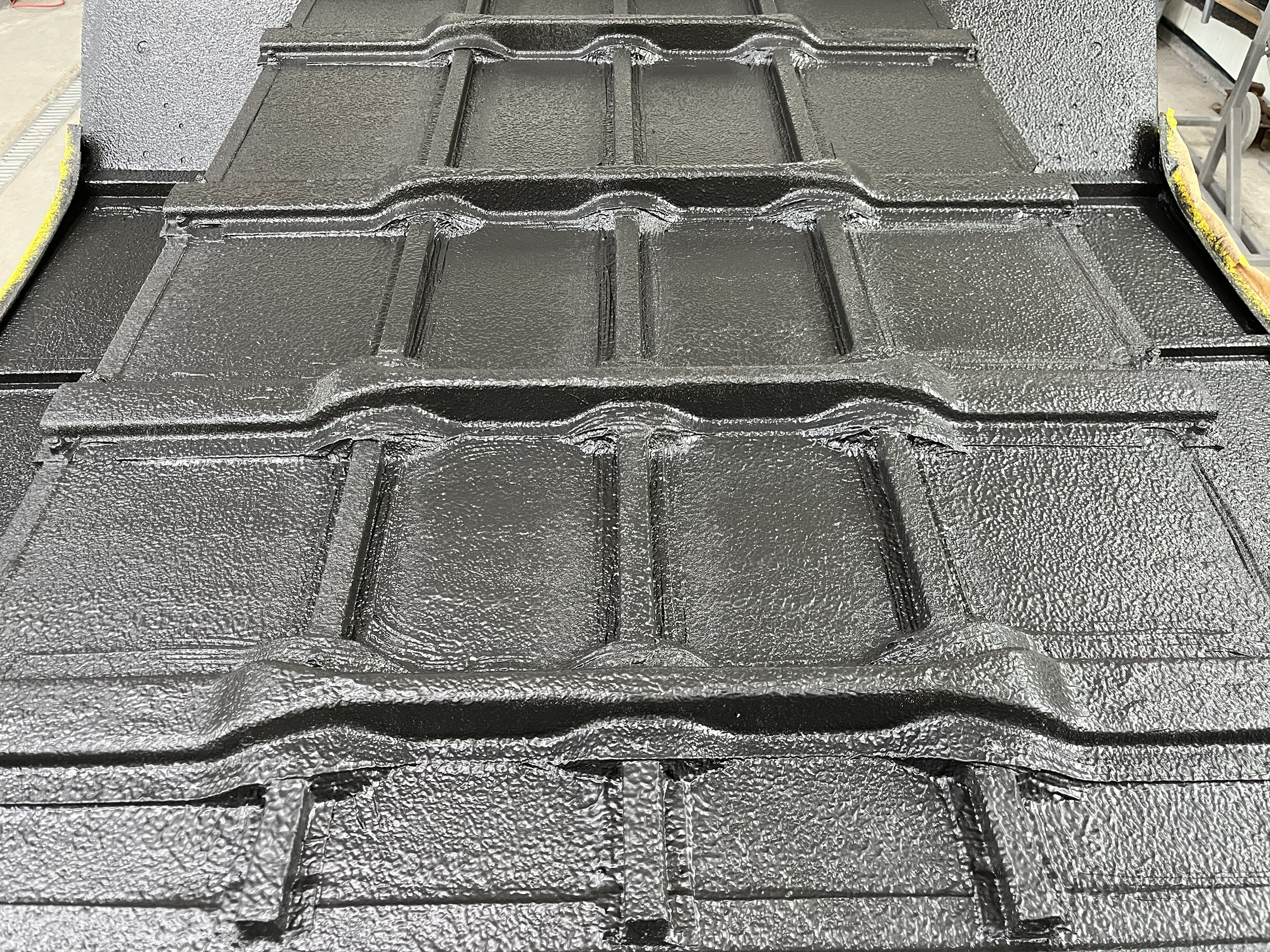

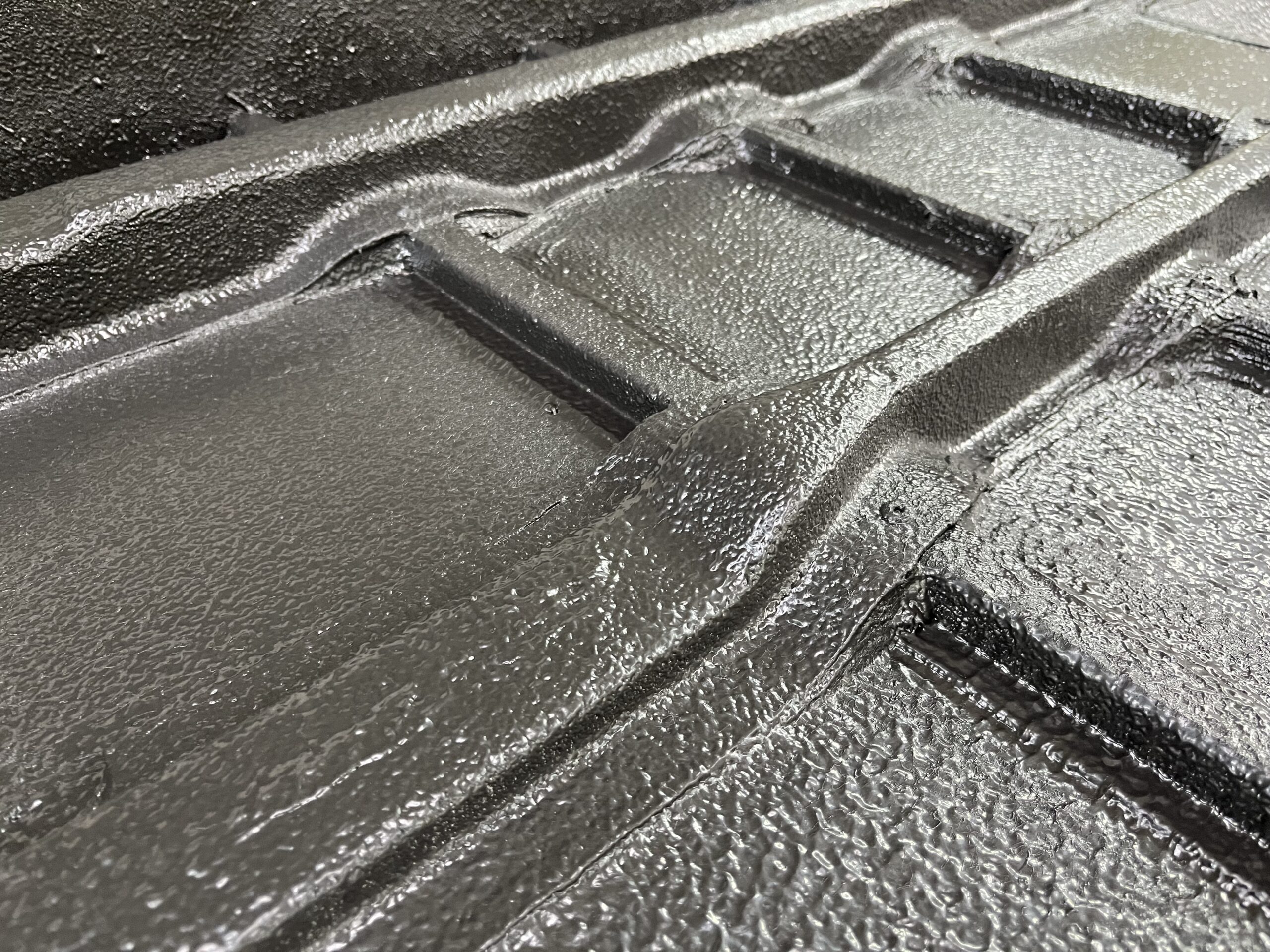

3b. POLYCOAT – Underbody Coating
For additional durability, the underbody is coated with NOVOL POLYCOAT, a specialized paint designed to resist moisture, road debris, and mechanical wear. This layer acts as a tough, protective shield against harsh environmental conditions.
4. Anti-Corrosion Epoxy Primer (NOVOL Anti-Corrosion Epoxy Primer)
A high-performance NOVOL Anti-Corrosion Epoxy Primer is applied, forming a strong and long-lasting protective layer against oxidation and rust. This primer enhances the adhesion of subsequent coatings while providing additional structural protection.
5. Spot Filler Application (NOVOL Spot Filler Application)
To achieve a smooth and flawless surface, NOVOL Spot Filler is used to correct minor imperfections. This step ensures that all surfaces are perfectly even, preventing any irregularities in the final paint application.
6. Primer (NOVOL Acrylic Primer)
A high-build NOVOL Acrylic Primer is applied to create a solid and uniform base for the topcoat. This primer further enhances paint adhesion and helps achieve a high-quality, even finish.
7. Base Coat (NOVOL SPECTRAL WAVE 2.0)
The body is coated with NOVOL SPECTRAL WAVE 2.0, a waterborne base coat known for its deep color saturation, excellent coverage, and UV resistance. This ensures a premium automotive finish with long-lasting vibrancy.
8. Clear Coat (NOVOL Clear Coat)
The final layer consists of a premium NOVOL Clear Coat, providing a high-gloss finish, exceptional depth, and additional protection against environmental factors such as UV rays, chemicals, and scratches.
This multi-step process guarantees an automotive-grade finish with exceptional durability, corrosion resistance, and aesthetic appeal, ensuring that every Pack One body maintains its quality and appearance for years to come.
Two-Tone Color
The Two-Tone finish allows for creative customization, featuring a primary color complemented by a contrasting color for the roof and hood. This design choice adds character and flair, making your Defender truly unique.
FINISH
Solid Color
The Solid Color finish offers a classic, vibrant option that showcases the Defender’s rugged design. This durable finish ensures your vehicle maintains its bold look while standing up to the elements.
Metallic Finish
Our Metallic finish adds depth and brilliance, reflecting light in a way that enhances the Defender’s iconic shape. This option gives your vehicle a sophisticated, eye-catching appearance that turns heads on and off the road.
Raptor Textured Paint
Our Raptor textured finishes provide a tough, rugged look while offering excellent protection against scratches and dents. This structural paint option is perfect for off-road enthusiasts who want both style and durability in their Defender.

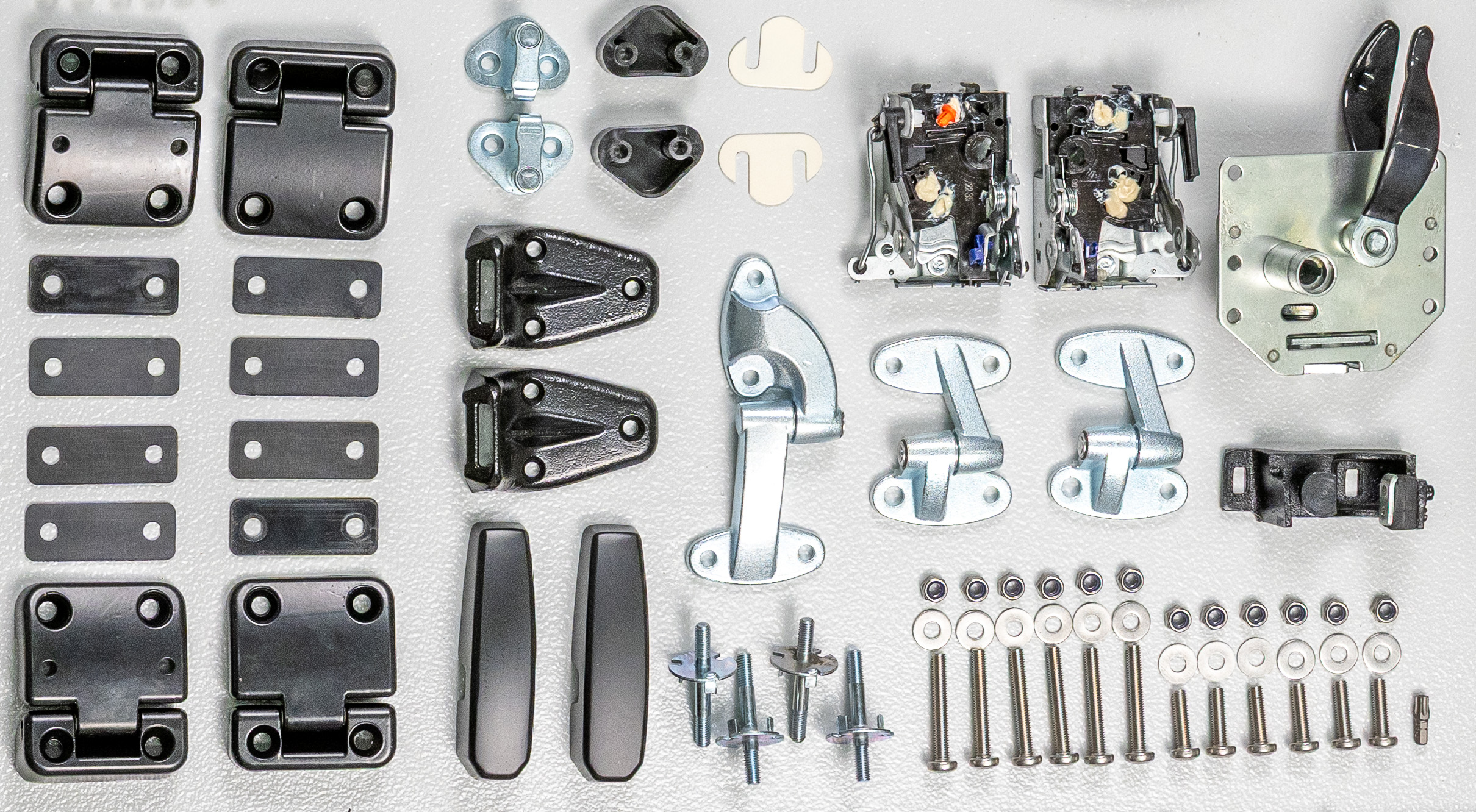

ADDITIONAL ELEMENTS
Transform your Land Rover Defender with the RedFox Defender Essential Seal & Hinge Kit—your all-in-one solution for enhanced functionality and durability. This comprehensive kit is meticulously crafted for the discerning Defender owner, featuring high-quality components.

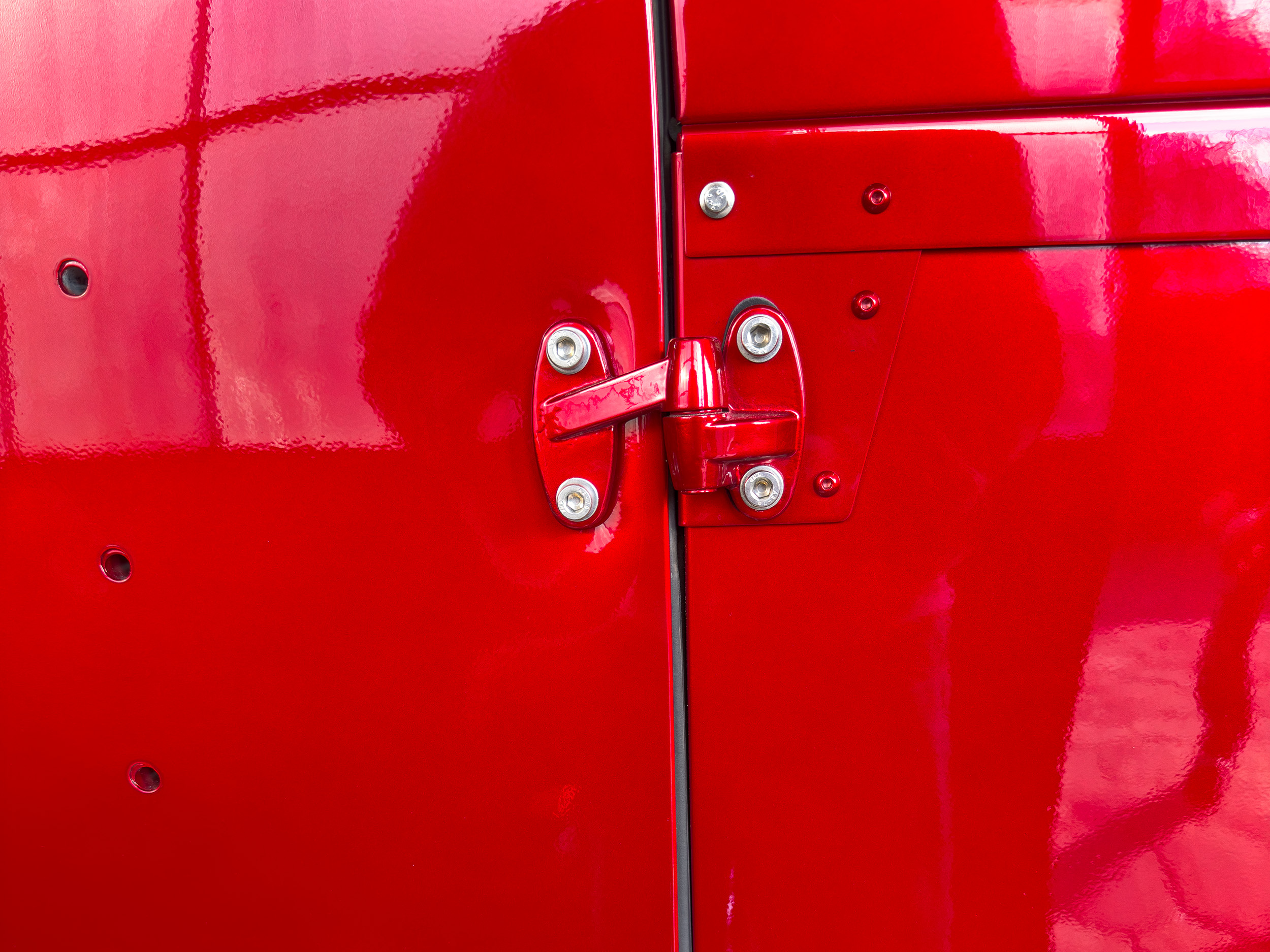

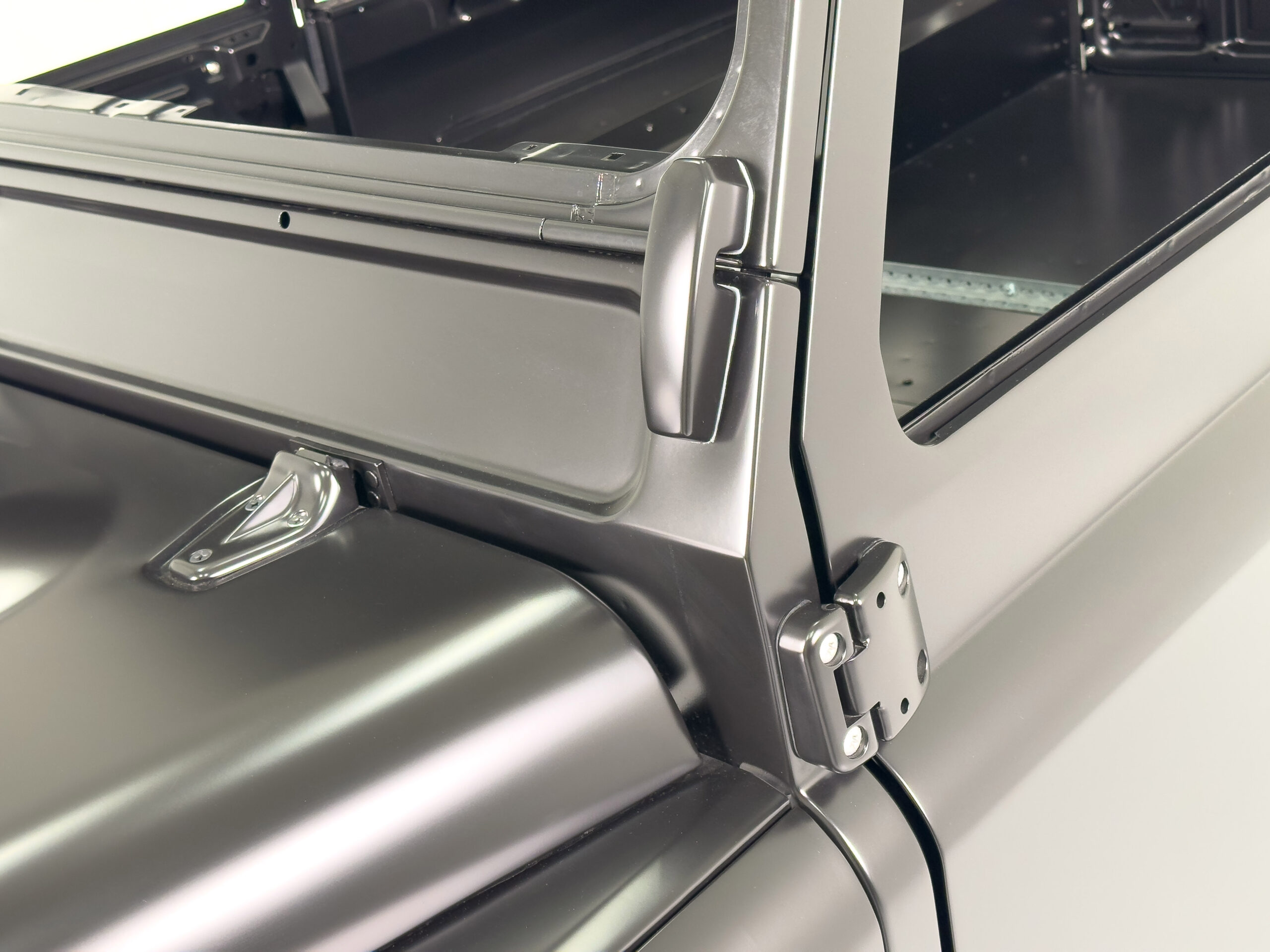

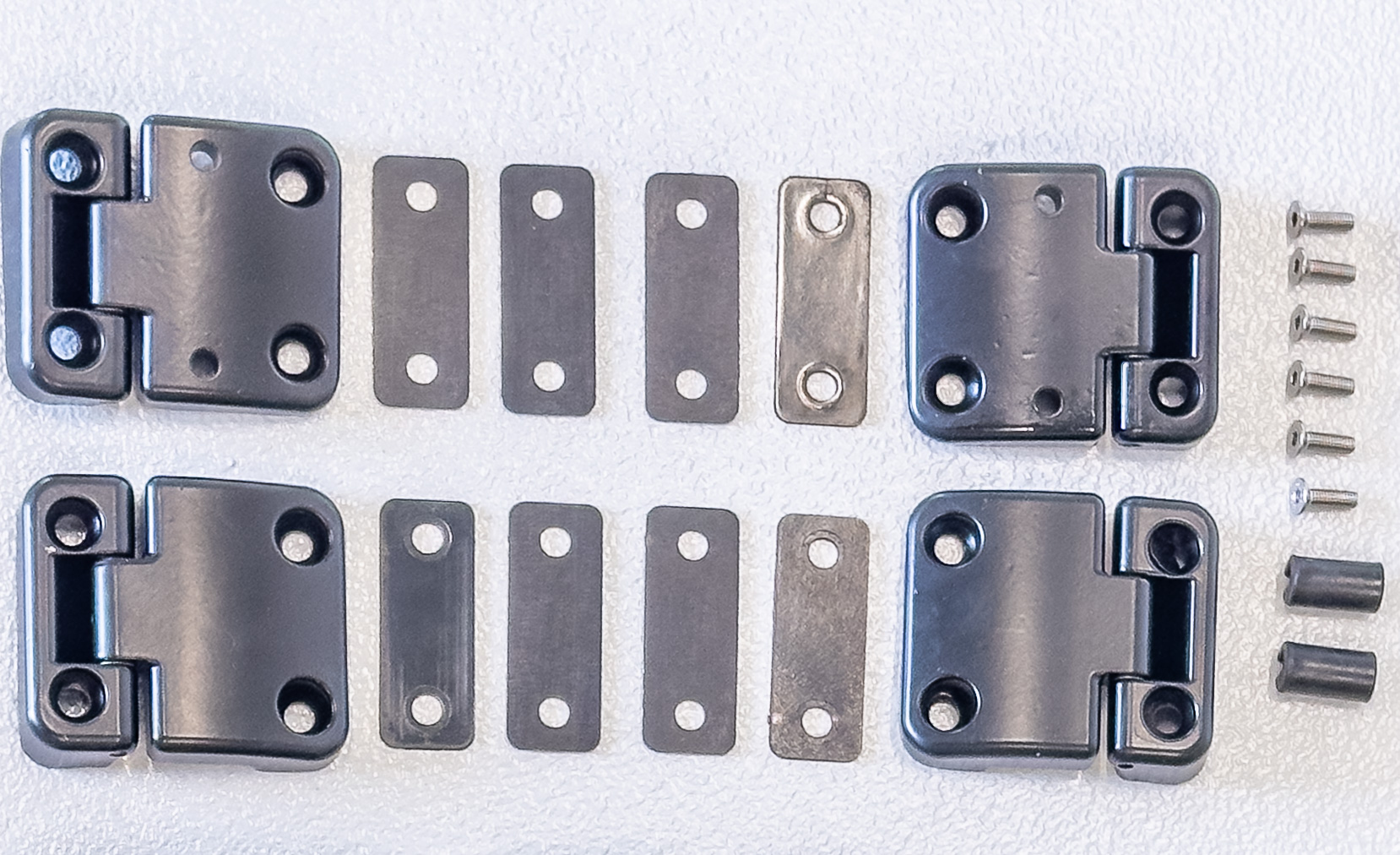

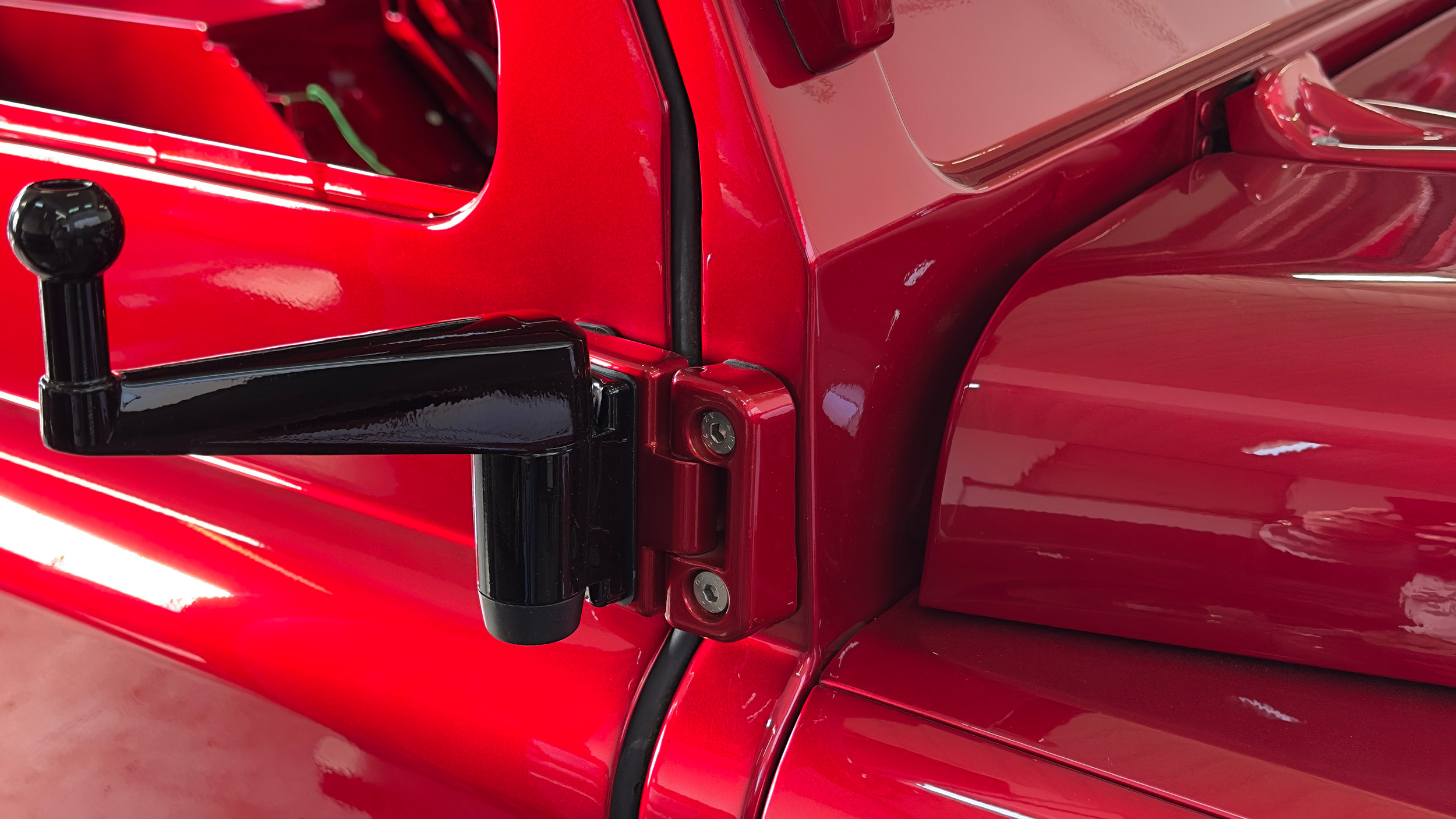

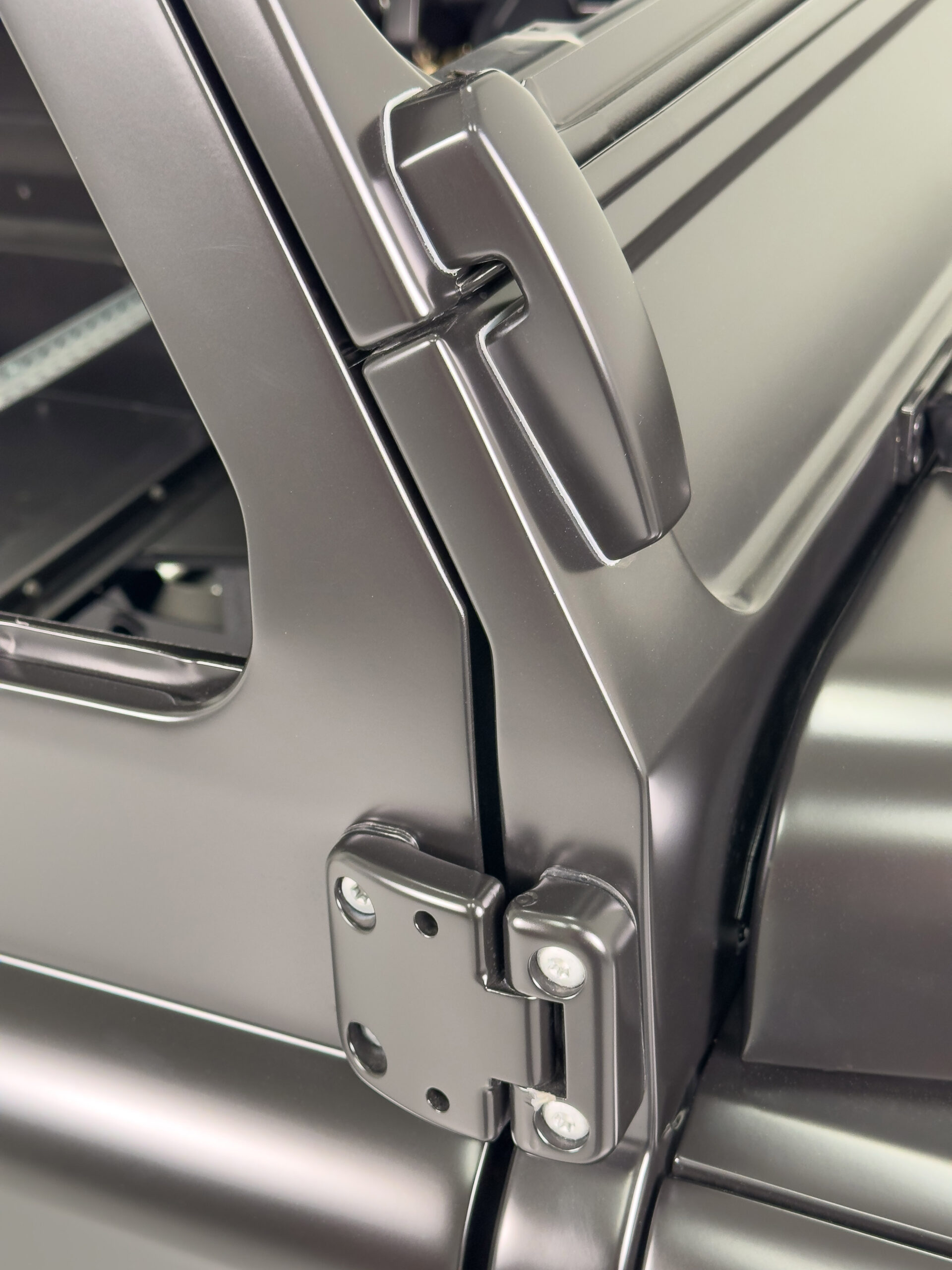

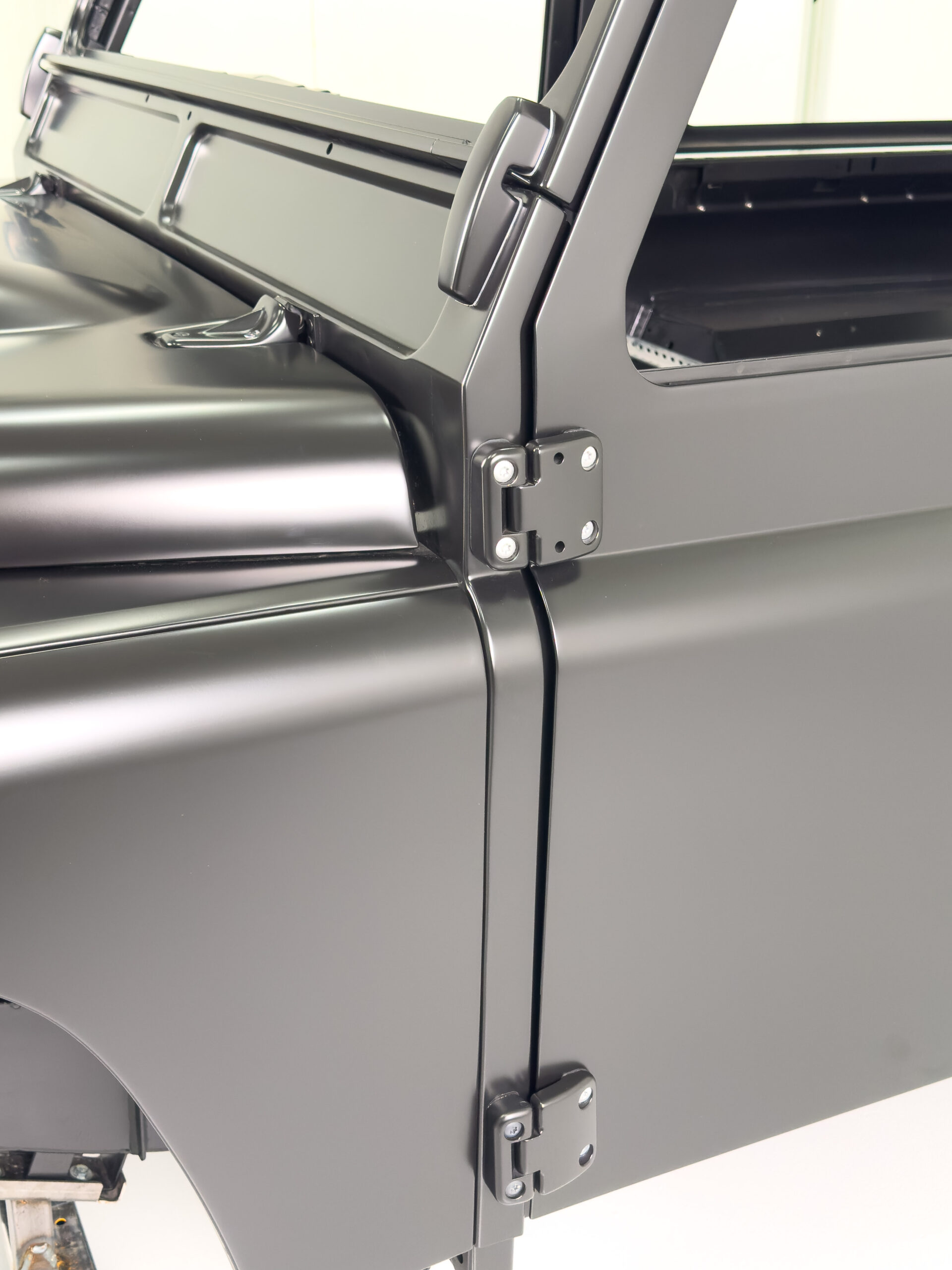

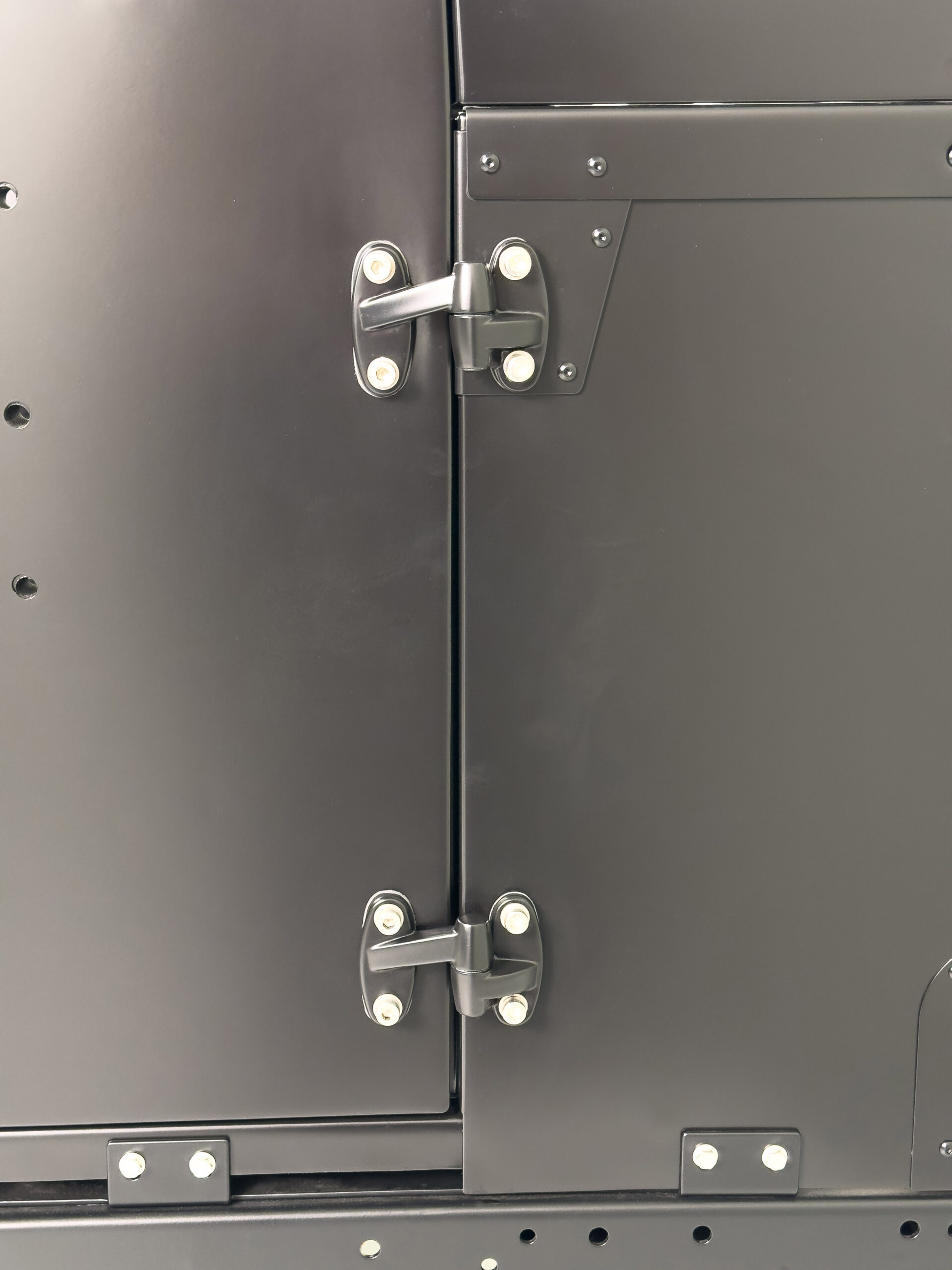

Door Hinges
Precision-engineered for a smooth opening and closing experience, our door hinges provide reliable support while enhancing the aesthetic of your Defender.
Hood Hinges
Designed for durability and ease of use, these hood hinges ensure that your engine bay is always accessible and secure, with a perfect fit that withstands the test of time.
Door Seals
Our door seals are expertly crafted to block out wind and water, ensuring a quiet and comfortable cabin while protecting your interior from the elements.
Front Window Seal Keep your cabin comfortable and dry with our front window seals, designed to provide a tight fit that prevents leaks and enhances insulation.
Cabin Seal
These cabin seals eliminate drafts and moisture intrusion, ensuring a pleasant driving experience regardless of weather conditions.

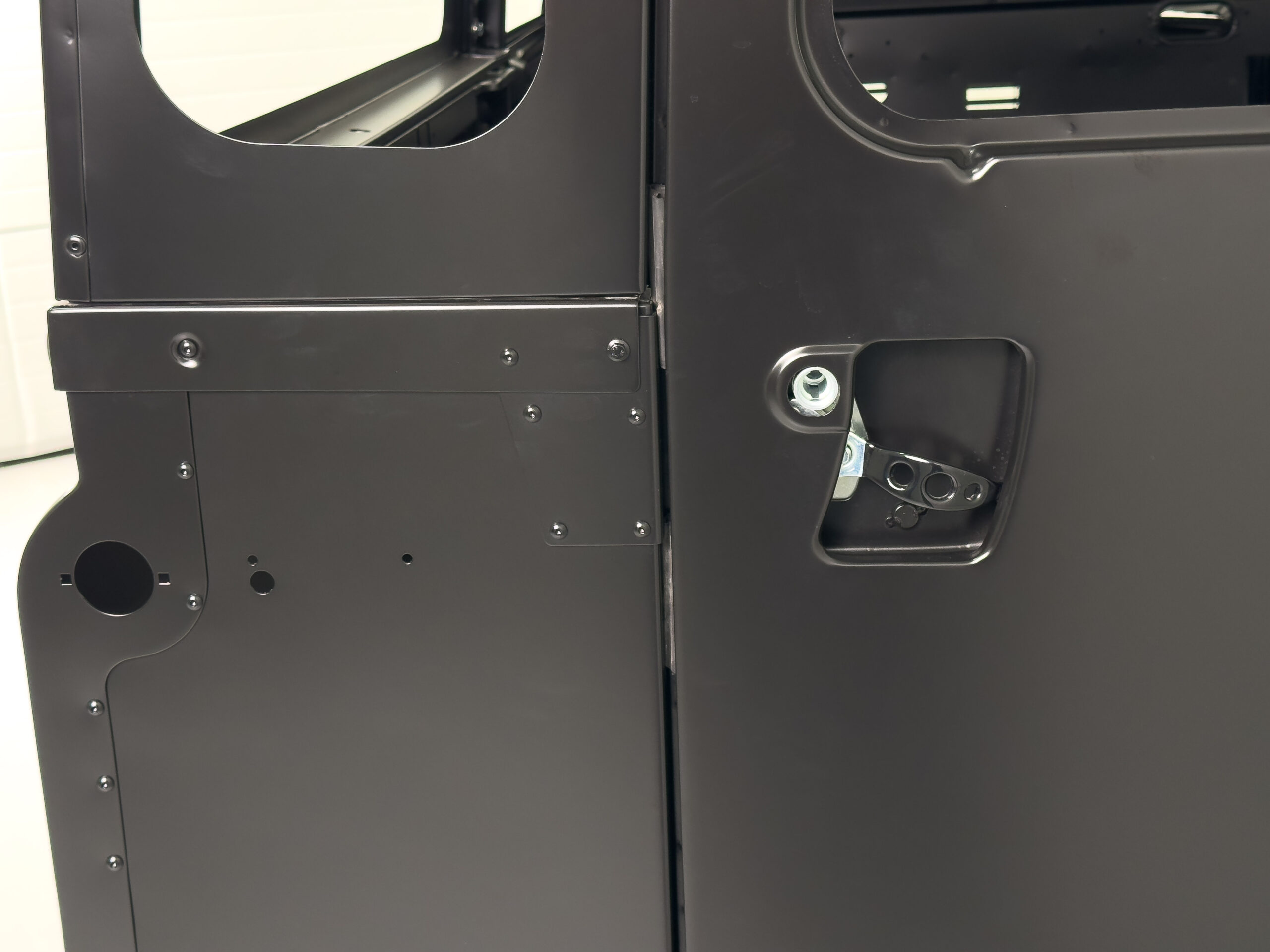

Door Locks & Latches
Enhance your Defender’s security with our robust door locks, offering reliable performance and easy installation for peace of mind. Our high-quality latches are designed for secure closure and smooth operation, ensuring that every door and hood is held firmly in place while allowing for effortless access.
